Advanced Geotechnical Laboratory for Soil and Rock Mechanics

A specialized geotechnical laboratory in Charlotte, North Carolina built to perform complex soil, rock and geoscience testing for R+D initiatives, mega-projects, nuclear + energy infrastructure, dams, transportation, seismic and federal programs, supported by analysis and engineering interpretation aligned with project needs.

A specialized geotechnical laboratory in Charlotte, North Carolina built to perform complex soil, rock and geoscience testing for R+D initiatives, mega-projects, nuclear + energy infrastructure, dams, transportation, seismic and federal programs, supported by analysis and engineering interpretation aligned with project needs.

How GTOC Works

The Geoscience Testing Operations Center (GTOC) is ECS Government Solutions’ advanced geotechnical and geomaterials testing laboratory. The GTOC is being developed to perform specialized static and dynamic soil mechanics, unsaturated soil behavior, ultrasonic geophysical testing, rock mechanics and seismic-related laboratory testing not commonly available in the commercial market. It is purpose-built to support testing demands for R+D initiatives, mega-projects, federal programs and high-consequence infrastructure where standard index testing does not provide enough information for design.

Lab testing redefined – The GTOC provides not just test results and data for complex laboratory experimentation, but also plain language test result analyses to explain the results, implications, and limitations towards project requirements and designs. GTOC advanced test requirements for forensic analyses , hazard forecasting, and risk mitigation.

The GTOC combines advanced equipment with experienced laboratory personnel and dedicated QA/QC protocols. Testing is performed as part of a broader engineering process, where results are supported by interpretation and connected to the design criteria required for each project. The team supports documentation, traceability and quality expectations associated with federal and nuclear programs, with ongoing efforts toward ASME NQA-1 certification and laboratory accreditation under recognized ASTM standards.

How GTOC Works

The Geoscience Testing Operations Center (GTOC) is ECS Government Solutions’ advanced geotechnical and geomaterials testing laboratory. The GTOC is being developed to perform specialized static and dynamic soil mechanics, unsaturated soil behavior, ultrasonic geophysical testing, rock mechanics and seismic-related laboratory testing not commonly available in the commercial market. It is purpose-built to support testing demands for R+D initiatives, mega-projects, federal programs and high-consequence infrastructure where standard index testing does not provide enough information for design.

Lab testing redefined – The GTOC provides not just test results and data for complex laboratory experimentation, but also plain language test result analyses to explain the results, implications, and limitations towards project requirements and designs. GTOC advanced test requirements for forensic analyses , hazard forecasting, and risk mitigation.

The GTOC combines advanced equipment with experienced laboratory personnel and dedicated QA/QC protocols. Testing is performed as part of a broader engineering process, where results are supported by interpretation and connected to the design criteria required for each project. The team supports documentation, traceability and quality expectations associated with federal and nuclear programs, with ongoing efforts toward ASME NQA-1 certification and laboratory accreditation under recognized ASTM standards.

geotechnical testing laboratory

Specialized Testing Capabilities

  • Resonant column testing — hollow and solid specimen (ASTM D4015)
  • Cyclic and static triaxial testing — UU, CU, CD including unsaturated and cyclic (ASTM D2850 / D4767 / D7181 / D5311 / D3999)
  • Torsional shear testing (ASTM D6467)
  • Bender element and ultrasonic shear wave testing for soils and rock (ASTM STP356773 / D2845)
  • Consolidation — incremental, constant rate of strain and controlled gradient (ASTM D2435 / D4186)
  • Shrink and collapse potential testing of expansive soils (ASTM D4546)
  • Permeability and erosion (EFA) testing (ASTM D2434 / D5084 / WK67195)
  • Direct shear and thermally controlled direct shear (ASTM D3080)
  • Resilient modulus and unsaturated soil characterization (AASHTO T307 / ASTM D7664)
  • Rock mechanics — point load, Brazilian tensile, unconfined compression and Brinell hardness (ASTM D5731 / D3967 / D7012 / E10)
  • Grain size by laser diffraction (ASTM E3340 / D4464)
  • 3-D X-ray CT visualization for sample quality review and R+D imaging

Specialized Testing Capabilities

  • Resonant column testing — hollow and solid specimen (ASTM D4015)
  • Cyclic and static triaxial testing — UU, CU, CD including unsaturated and cyclic (ASTM D2850 / D4767 / D7181 / D5311 / D3999)
  • Torsional shear testing (ASTM D6467)
  • Bender element and ultrasonic shear wave testing for soils and rock (ASTM STP356773 / D2845)
  • Consolidation — incremental, constant rate of strain and controlled gradient (ASTM D2435 / D4186)
  • Shrink and collapse potential testing of expansive soils (ASTM D4546)
  • Permeability and erosion (EFA) testing (ASTM D2434 / D5084 / WK67195)
  • Direct shear and thermally controlled direct shear (ASTM D3080)
  • Resilient modulus and unsaturated soil characterization (AASHTO T307 / ASTM D7664)
  • Rock mechanics — point load, Brazilian tensile, unconfined compression and Brinell hardness (ASTM D5731 / D3967 / D7012 / E10)
  • Grain size by laser diffraction (ASTM E3340 / D4464)
  • 3-D X-ray CT visualization for sample quality review and R+D imaging

Geo-Structural Research

geotechnical testing laboratory

Geo-Structural Research

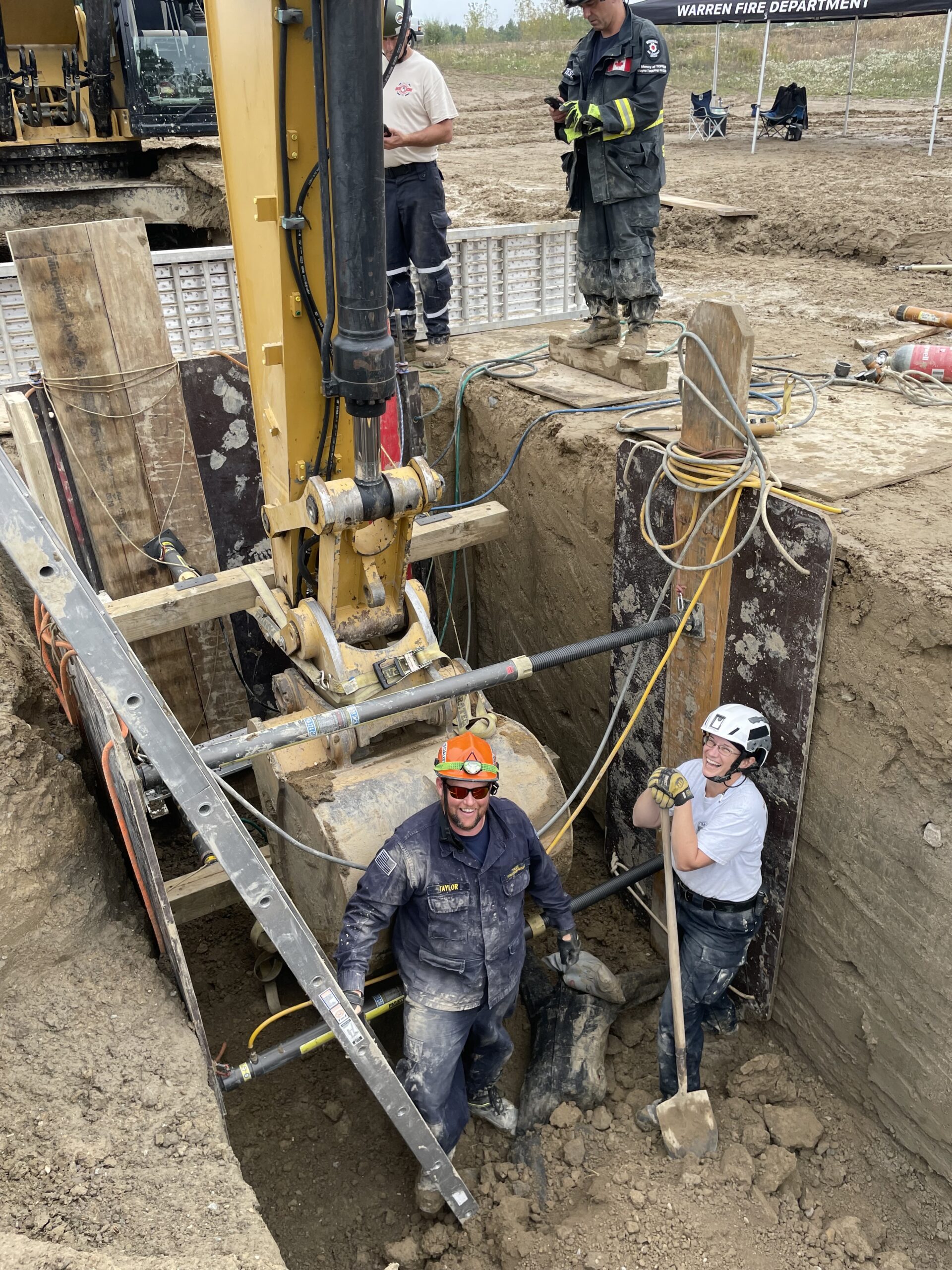

ECS Government Solutions is leading the research effort into the use of structural steel as ground improvement entities, novel foundation systems, and trench shoring systems.By translating engineering principles into an operationally realistic protocol, these studies bridge critical gaps between geotechnical engineering theory and real-world applications. As an example, ECS Government Solutions has conducted applied research into the design of Pressure Grouted Drilled-In Displacement Piles (PGDDP). PGDDPs combine ground improvement principles with multiphase high pressure grouting to achieve capacities and performance beyond those of conventional deep foundations systems particularly in unsuitable soil conditions. Allowing improved foundational performance at lower costs to our clients.

ECS Government Solutions is leading the research effort into the use of structural steel as ground improvement entities, novel foundation systems, and trench shoring systems.By translating engineering principles into an operationally realistic protocol, these studies bridge critical gaps between geotechnical engineering theory and real-world applications. As an example, ECS Government Solutions has conducted applied research into the design of Pressure Grouted Drilled-In Displacement Piles (PGDDP). PGDDPs combine ground improvement principles with multiphase high pressure grouting to achieve capacities and performance beyond those of conventional deep foundations systems particularly in unsuitable soil conditions. Allowing improved foundational performance at lower costs to our clients.

When to Engage GTOC

  • Project requires testing beyond ASTM, ISO, or other code standards
  • Site-specific dynamic soil properties are required for seismic design, liquefaction or response analysis
  • Nuclear, energy or other high-consequence projects requiring high testing compliance with elevated documentation and quality expectations
  • Dams, levees, ports and infrastructure with specialized testing requirements
  • Mega-projects where standard commercial laboratories cannot meet scope, schedule or quality framework
  • Research, proof-of-concept, hazard forecasting, risk mitigation or forensic evaluations requiring advanced material characterization

When to Engage GTOC

  • Project requires testing beyond ASTM, ISO, or other code standards
  • Site-specific dynamic soil properties are required for seismic design, liquefaction or response analysis
  • Nuclear, energy or other high-consequence projects requiring high testing compliance with elevated documentation and quality expectations
  • Dams, levees, ports and infrastructure with specialized testing requirements
  • Mega-projects where standard commercial laboratories cannot meet scope, schedule or quality framework
  • Research, proof-of-concept, hazard forecasting, risk mitigation or forensic evaluations requiring advanced material characterization
geotechnical testing laboratory

Contact ECS Government Solutions

Have a project that requires specialized geotechnical testing or advanced laboratory data? Connect with the ECS Government Solutions team to start the conversation.
